Tail mounting plate comes in three sizes for Tail bell and Transmitter use

Tail mounting plate comes in three sizes for Tail bell and Transmitter use.

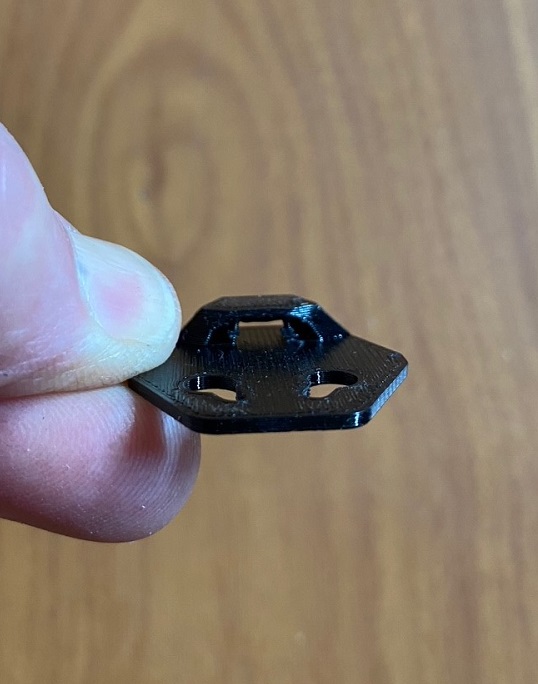

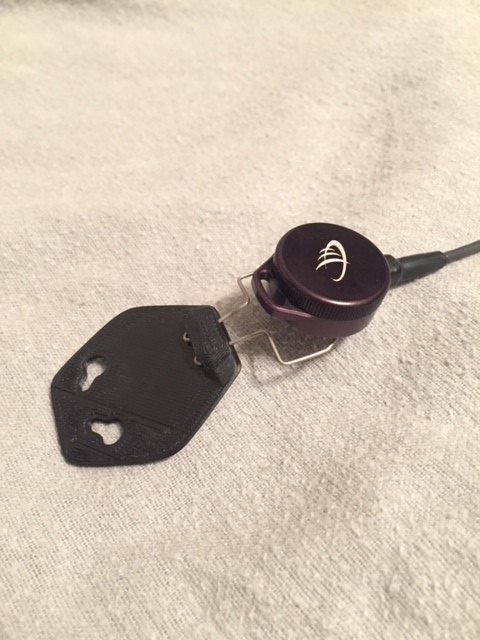

We are now offering a new re-designed mounting plate made from a light weight carbon plate that can be attached to the deck feathers very easily. The tail bell can be attached at the top of the plate and the transmitter is attached by pushing the transmitter spring through the tubular carbon hole on the end of the mounting plate.

Instructions for attaching a tail plate for bell & Transmitter use.

The tail plate is attached with a small peace of then leather or a plastic tie wrap around at least two center tail feather shafts. You bring the tie line from under the tail shaft around two feather shafts and then put them through the two holes in the tail plate and then tie these two ends in a knot. You then can attach a smaller bell to this leather line and then tie another knot.

This should hold the tail plate on well by doing it this way. If you have any questions please give us a call we will be glad to help.

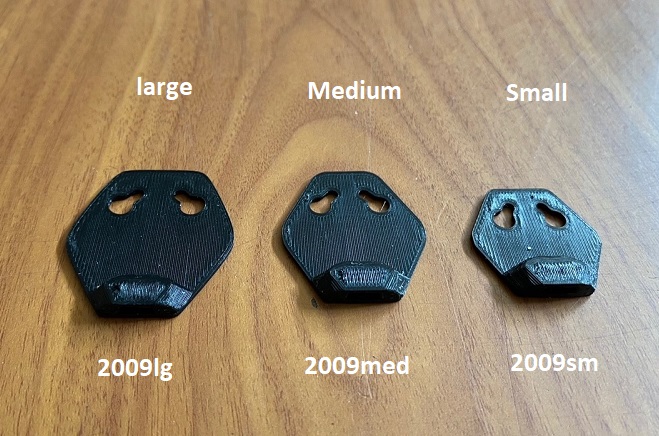

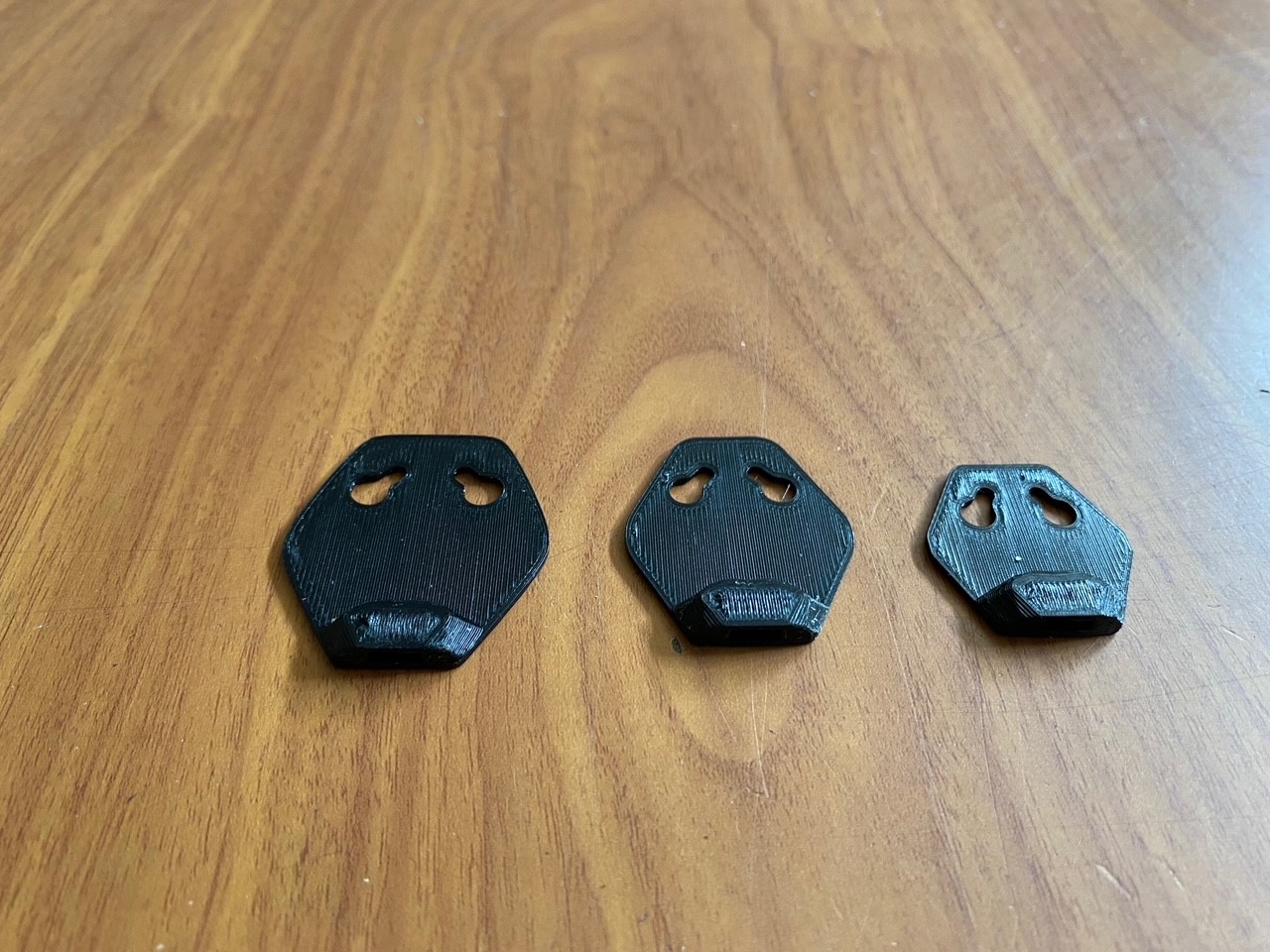

2009lg Large Tail mount plates for Goshawk, Harris, Red tail up to Gyr falcons from 800 to 1600 grams. Size of mounting plate is 1.5″ long x 1 1/4″ wide.

2009med – Tail mounting plates for med Falcons and hawks from 500 to 800grams. Size of plate is 1 3/8″ long x 1 3/8″ wide.

2009sm – Small tail mounting plates for Micro birds up to 300 gram birds, using Micro transmitters. Size of mounting plate is 1 1/8″ long x 1″ wide.

PLEASE NOTE: TRANSMITTER DOES NOT COME WITH TAIL MOUNTING PLATE.
